TECNO WALL 150

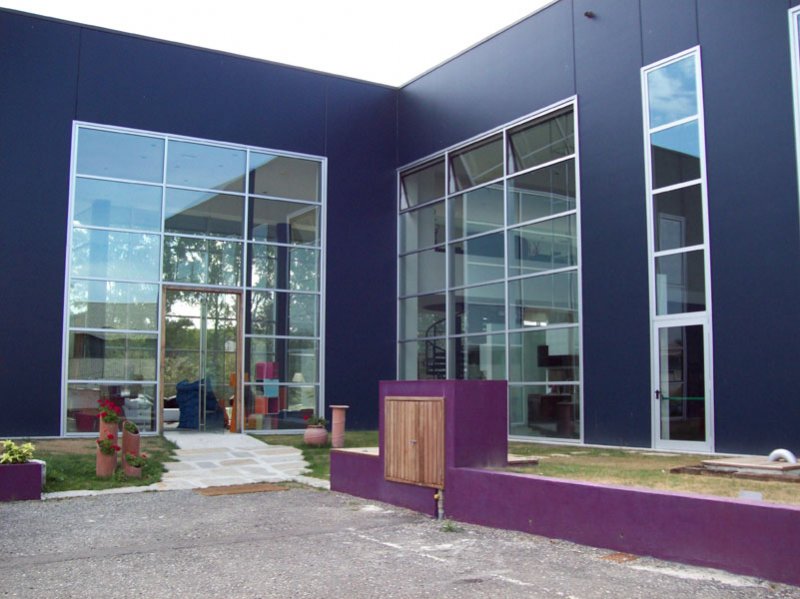

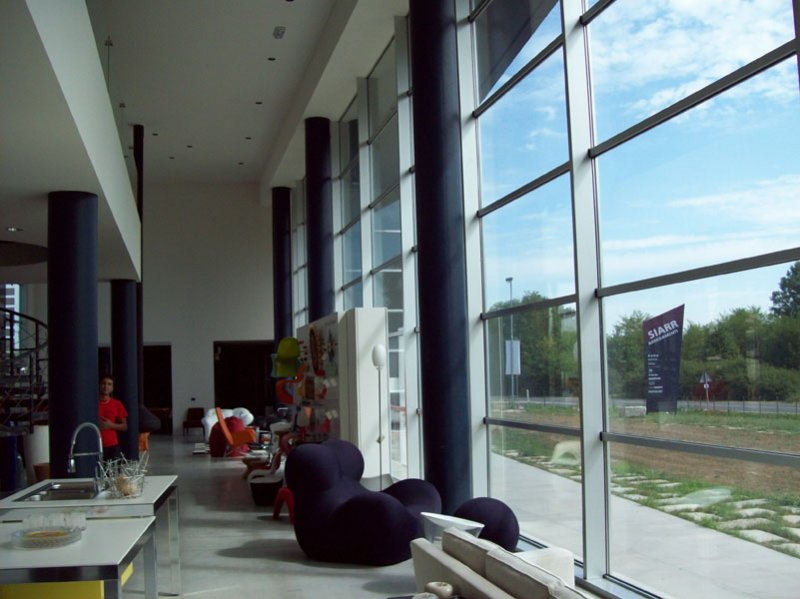

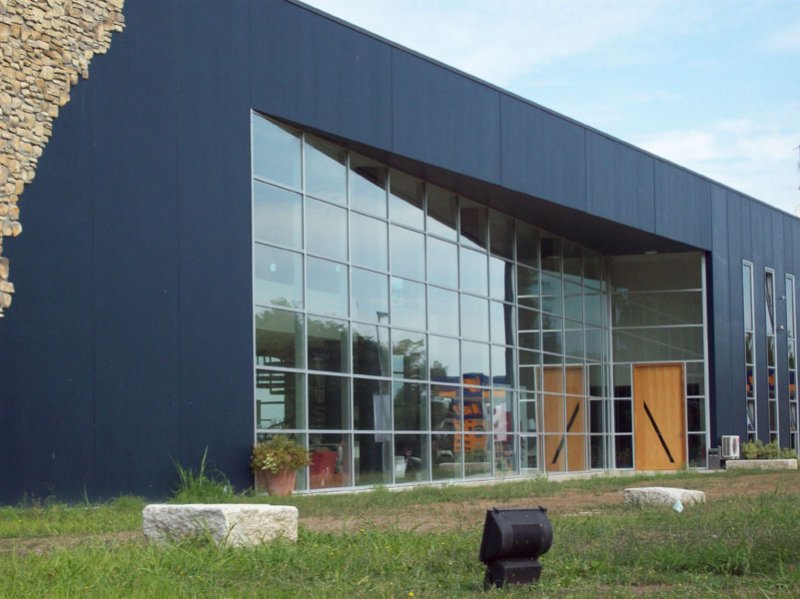

                                            Series for curtain wall.
Mullion 60 mm.
Transom 60 mm.

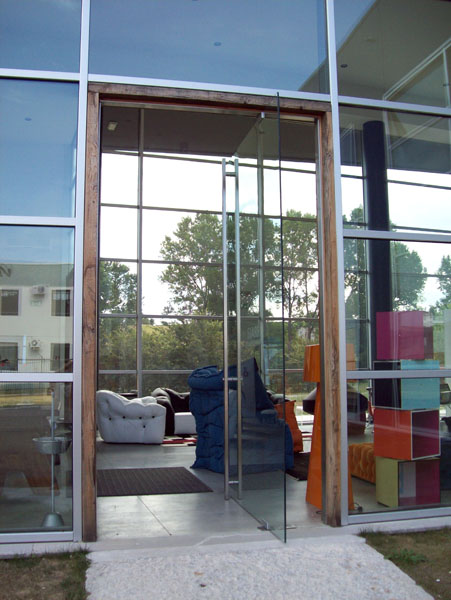

Possibility of inserting internal, external and projecting out openings.

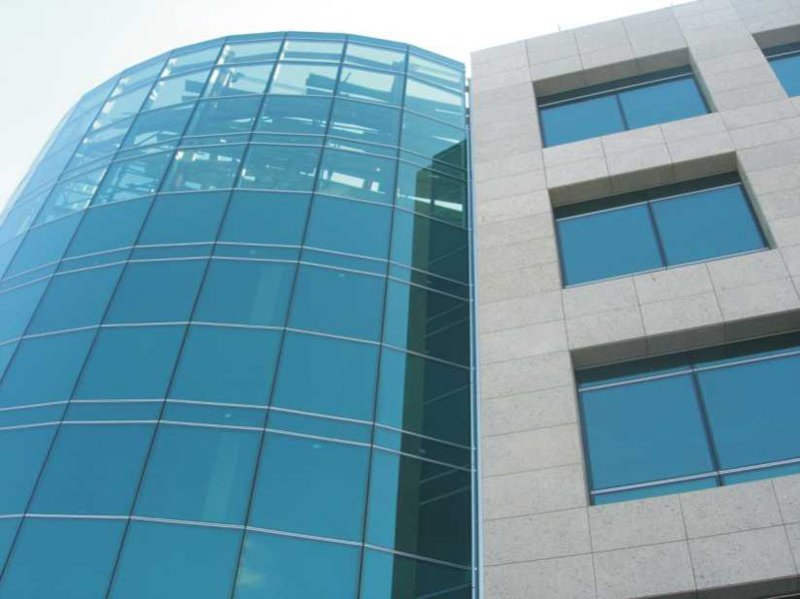

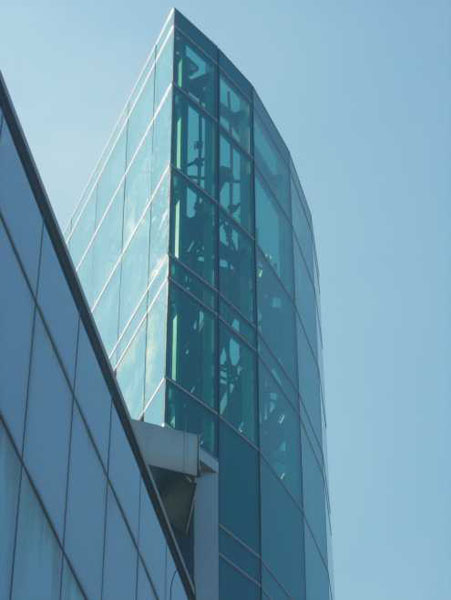

Curtain wall solutions: structural and semi-structural.

SYSTEM DATA SHEET

Extruded alloy profiles: 6060 (EN 5-3)
Supply condition: T5 (EN 755-2)
Dimensional tolerances and thickness: EN 755-9

Structure
The supporting structure is made of 60 mm wide tubular uprights and transoms. The series is equipped with a variety of uprights in order to choose the most suitable static solution for various applications (dimension of the modules, load of the glass, etc..).
Galvanized steel brackets painted with epoxy resins with three-dimensional movement are used to connect the structure to the walls of the building.

Insulation
The thermal insulation, in the load bearing structure of the uprights and transoms, is obtained using the EPDM seal and the appropriate polyamide spacers.

Sealing
The gaskets must be sealed carefully to prevent water from seeping inside.
Particular attention must be paid to the joint between the upright and transom.

Mobile frame

Type with external cover, with the possibility of a casement or projecting out opening.
Type with thermal break wing and projecting out opening structural glazing.
Type with thermal break wing and projecting out opening semi-structural glazing.

Glass/panels
For the installation of glass and panels using the wide range of gaskets available. Thicknesses from 16 to 32 mm can be used.

Accessories
CLL distributes a wide range of accessories for the TECNO WALL 150 system, to create the versions shown in the catalogue.

TEST CERTIFICATE

Performance
Test report No. 249972/3892/CPD issued by the Istituto Giordano as a notified testing laboratory (No. 0407) according to Directive 89/106/EEC (CPD).

Results obtained:

Type of test	Class
Permeability to air of fixed parts	AE900
Permeability to air of opening parts	4
Permeability to air of fixed parts under pressure	AE900
Permeability to air of opening parts under vacuum	4
Water tightness	RE750
Resistance to wind load for a design load of 1600 Pa	Positive
Internal impact resistance	I5
